Shed Wiring Tips: Expert Installation Guidance for Professionals

If you own a shed on your acreage property and have grown weary of relying on extension leads from your home, it is crucial to consider having it properly wired. Whether your shed is a simple storage shed requiring just a light and a power point, or a fully equipped workshop where you utilise welders and compressors, following a systematic procedure is imperative. In NSW, the only legal and safe method to accomplish this is by hiring the services of a licensed electrician who is well-versed in local regulations and best practices.

This comprehensive guide outlines the essential steps required to supply power to your shed, detailing what your electrician will need to install, while also providing an estimate of the costs likely to arise in the Mid North Coast region. By understanding these components, you can ensure a safe and effective electrical setup for your shed.

Initiate Your Shed Wiring Project by Understanding the Cable Run Requirements

The most critical element of any shed wiring project is establishing a reliable power source that connects your main switchboard to your shed. Depending on the size of your property, this distance can vary from 30 to over 100 metres. The longer the cable run, the larger the cable size required to effectively manage voltage drop, ensuring your shed receives the necessary power efficiently and safely.

You essentially have two primary options for your cable run:

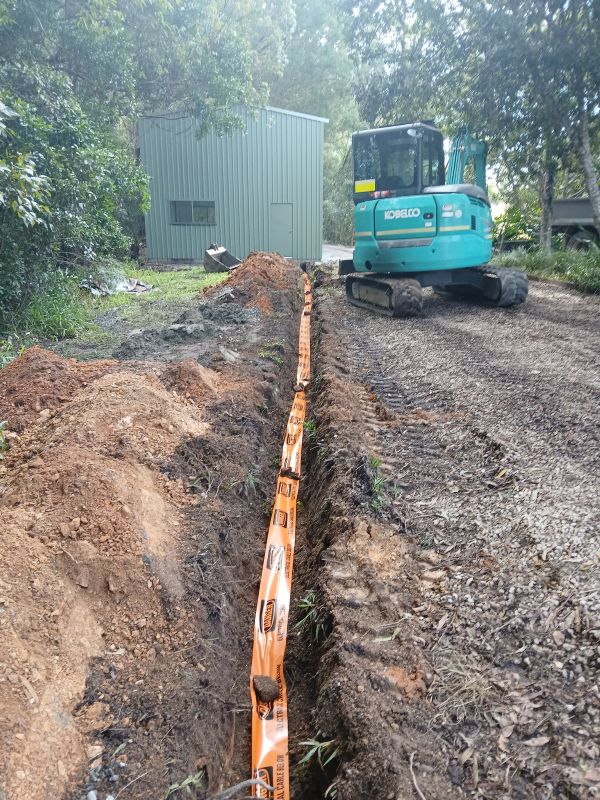

• Underground cable run — This is the preferred and most visually appealing option. A licensed electrician will install heavy-duty cable through orange conduit, buried at least 500mm deep (or deeper if vehicles are expected to traverse the area). This method safeguards the cable from adverse weather conditions, animals, and falling branches, making it ideal for most acreage properties.
• Overhead cable run — Although less common in modern installations, this method may be necessary if you encounter solid rock or challenging terrain that complicates trenching. Overhead installations must adhere to specific clearance heights and support poles, which can considerably inflate overall costs.

For the majority of properties in Bellingen, Coffs Harbour, and the Mid North Coast, the underground option remains the best choice. Your electrician in Bellingen can assess your site and recommend the most effective route for your installation, ensuring that safety and aesthetics are prioritised.

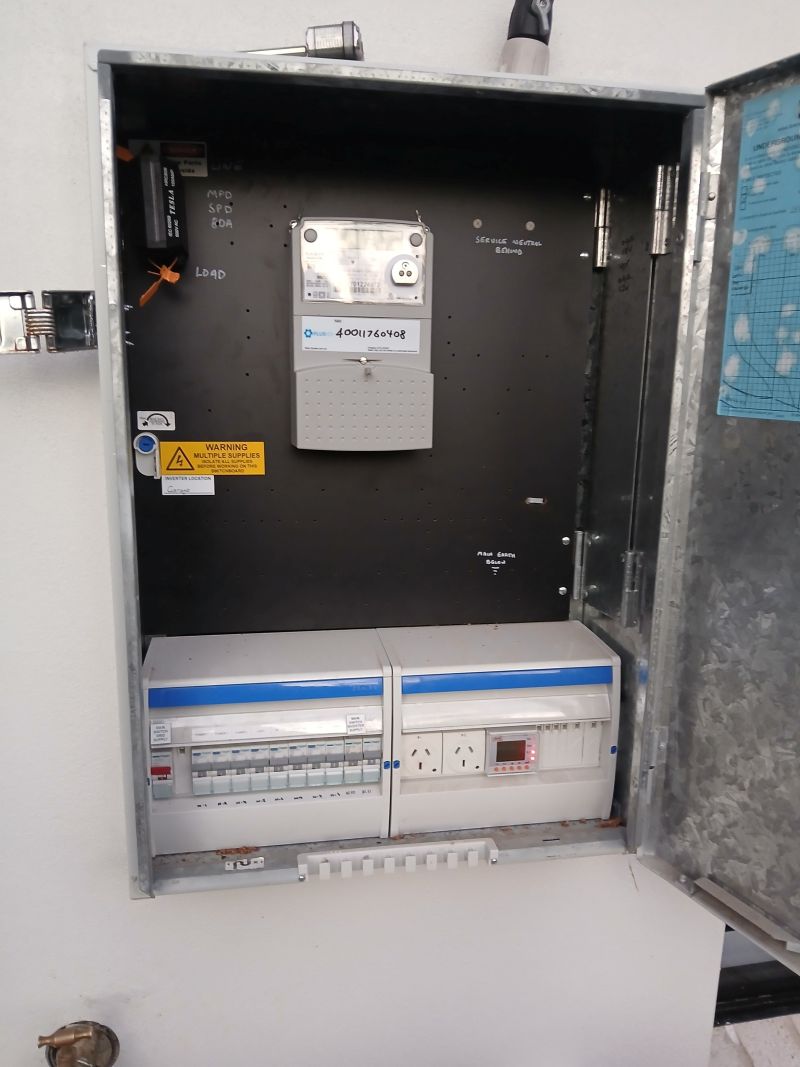

Setting Up a Dedicated Sub-Board for Efficient Shed Power Management

It is inadequate to merely run a single cable to the shed and expect to plug in devices without additional infrastructure. Any shed receiving a proper power supply must be equipped with its own dedicated sub-board, also referred to as a distribution board. This setup serves as a mini switchboard within the shed, effectively managing all the electrical circuits and ensuring safe operation of your electrical equipment.

Your sub-board will typically consist of the following essential components:

• Main switch — This switch allows you to isolate all power to the shed independently from the main house, providing an extra layer of safety in case of emergencies.
• RCDs (safety switches) — These devices are mandatory under NSW electrical regulations. They instantaneously cut the power in milliseconds if a fault occurs, which is critical in a shed environment that is often exposed to moisture, dust, and potential damage.
• Circuit breakers — These offer individual protection for each circuit in your shed, covering lighting, general power, and dedicated tool circuits, ensuring you can operate multiple devices without the risk of overloading the system.

If your house's main switchboard is older, your electrician may also recommend upgrading the switchboard to accommodate the additional load directed to the shed, ensuring that all connections remain safe and efficient for your power needs.

What Key Equipment Should Be Installed Inside Your Shed?

The specific installations performed by your electrician inside the shed will be customised to its intended use and functionality. Here’s a detailed breakdown of what these installations typically encompass to ensure optimal utility.

Upgrading a Basic Storage Shed Setup for Better Functionality

For a shed primarily used for storing tools, a ride-on mower, or general equipment, consider the following installations that enhance usability and safety:

• LED batten lights — Installing one or two ceiling-mounted LED battens can effectively illuminate the entire space, making it easier to locate items. Your trusted electrician can provide advice on the most suitable lighting layout based on the shed's dimensions and your specific storage requirements.
• Two to four general power points — This quantity is sufficient for plugging in chargers, radios, or a drop saw whenever needed, ensuring convenience. Standard power points and switches will operate on a single circuit, providing versatility for various tools and devices.
• External light — An outdoor-rated LED light above the door ensures that you can access the shed safely without fumbling in the dark, enhancing both safety and convenience during evening hours.

Designing a Fully Powered Workshop Shed for Maximum Efficiency

If you frequently utilise power tools such as drop saws, bench grinders, or dust extractors, your wiring requirements will extend beyond basic setups and require meticulous planning to ensure optimal functionality:

• Multiple circuits — Create separate circuits for lighting, general power, and specialised power tool outlets. This configuration prevents lights from flickering each time you activate a saw, ensuring a stable working environment that boosts productivity.
• Higher-rated power points — Install 15-amp or 20-amp outlets to effectively accommodate heavier tools, ensuring you have the correct power supply for your equipment without risk of overload.

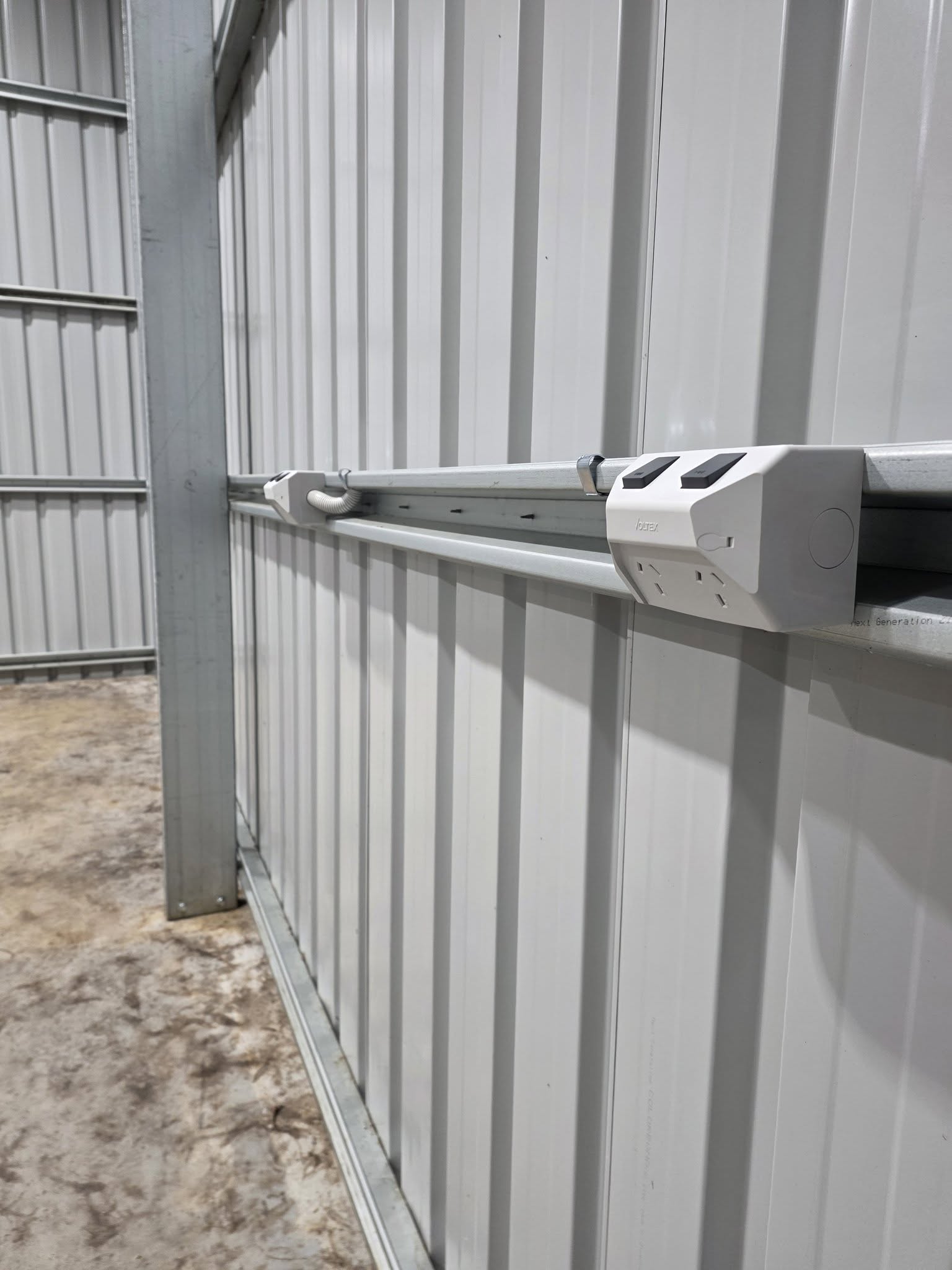

• Increased number of power points with optimal placement — Ensure outlets are positioned at bench height rather than only at skirting level, facilitating ease of use based on your workbench arrangement and preventing unnecessary strain.

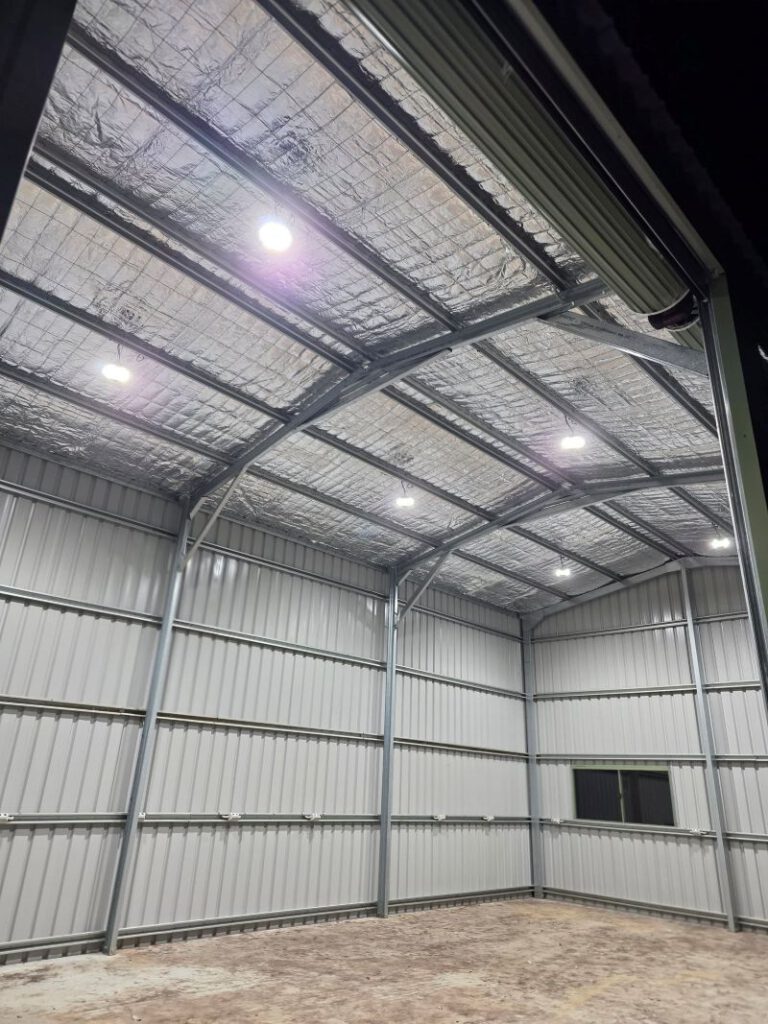

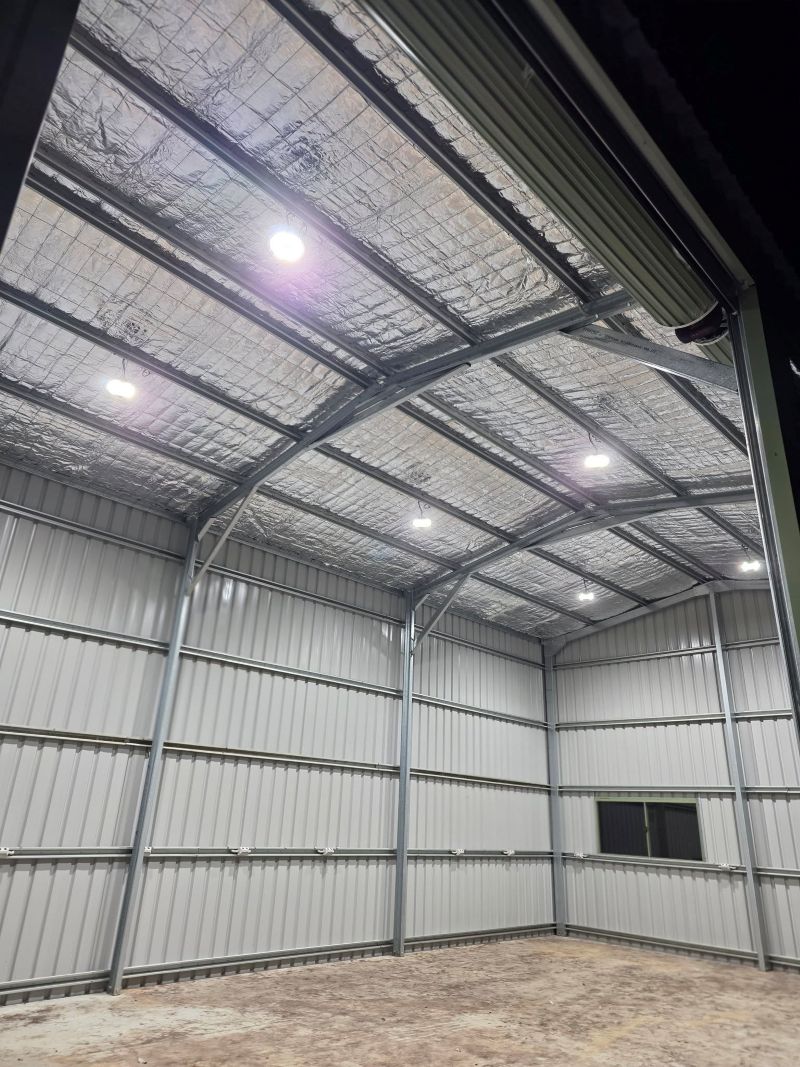

• Dedicated lighting — Provide brighter, targeted lighting over work areas, utilising LED high-bays for larger sheds to enhance visibility and safety, thereby reducing the risk of accidents.

For comprehensive guidance on establishing dedicated circuits for heavy tools, check out Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment, which delves into the specifics of effective wiring solutions tailored for workshops.

Equipping a Comprehensive Workshop with Essential Three-Phase Power

If your activities involve heavy machinery such as large compressors, lathes, MIG welders, or commercial-grade equipment, relying solely on single-phase power may not suffice. This is where Three-phase power becomes crucial to meet your demands effectively.

Three-phase power provides a more stable and higher-capacity power supply, allowing you to operate multiple heavy-duty machines simultaneously without sacrificing performance. Your electrician will need to:

• Organise a three-phase supply from your energy distributor (this process can take several weeks in the Mid North Coast area, so plan accordingly).
• Install a three-phase sub-board in your shed, complete with the necessary breakers and RCDs to ensure safety and compliance with local regulations.
• Utilise heavier cabling — Keep in mind that three-phase cable runs can be more expensive, especially over extended distances, so careful planning is vital to manage costs.
• Set up three-phase outlets — These heavy-duty sockets are specifically rated for the equipment you plan to operate, providing the necessary power for effective functioning of your tools and machines.

If you’re uncertain about whether you require three-phase power, read Do I Need Three-Phase Power on My Property? — this resource discusses when it is beneficial and when a properly configured single-phase system will suffice. We also provide full three-phase switchboard installation if that aligns with your needs and project requirements.

Protecting Your Shed with Essential Surge Protection Measures

Properties situated on the Mid North Coast frequently experience intense lightning storms. A direct or nearby strike can potentially damage everything within your shed, including tools, chargers, fridges, and any devices plugged in, resulting in costly repairs and replacements.

Investing in a reliable surge protection device, installed within the sub-board, serves as inexpensive insurance against electrical surges. It absorbs voltage spikes before they can reach and damage your valuable equipment. For sheds housing costly tools or workshop setups, this measure proves invaluable and could save you significant costs in the long run.

If your property also utilises a generator for backup power, your electrician can install a generator changeover switch, ensuring that both the shed and the house can safely transition to generator power during outages, thereby maintaining critical operations during emergencies.

What Are the Requirements for Council Approval and Compliance in NSW?

Here are several important considerations to keep in mind when planning your shed wiring project:

• All electrical work in NSW must be performed by a licensed electrician. There are no exceptions to this rule. While you may dig the trench yourself to save on labour costs, all electrical work — including cabling, connections, and sub-board installation —must be handled by a licensed contractor who will issue a Certificate of Compliance (CCEW) upon completion.
• Depth of underground cable must adhere to AS/NZS 3000 (the Wiring Rules), a standard your electrician will ensure compliance with during the installation process. This ensures safety and protects against potential hazards.
• If the shed is newly constructed, you may need development approval depending on your local council and the size of the shed. While the electrical work itself might not require a separate permit, the overall construction may necessitate one, so it’s best to check local regulations beforehand.

Hack-It Electrical Solutions proudly holds the NSW Electrical Contractor Licence #230609C. We provide a compliance certificate for every job we complete, ensuring peace of mind and adherence to local regulations for your project.

Understanding the Costs Involved in Shed Wiring on Acreage Properties

Each shed presents unique challenges — including distance from the house, whether you require single-phase or three-phase power, the number of circuits needed, and soil conditions impacting trenching. However, here’s a realistic cost guide for the Mid North Coast area:

• Basic shed wiring (lighting + a few power points, short cable run) — Starting from $2,500, depending on the complexity of your setup.
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500, accommodating the necessary infrastructure for your tools.
• Full workshop setup with three-phase power, dedicated circuits, and surge protection — Starting from $8,000+, a worthwhile investment for serious tradespeople.

Be aware that longer cable runs (50m or more), rocky terrain requiring specialised equipment, or upgrades to three-phase supply will all increase costs. The most effective way to obtain an accurate estimate is to have your electrician visit your property, assess the cable route, and gain a clear understanding of your shed's intended use and requirements.

If you would like a straightforward quote tailored to your specific setup, feel free to call us at 0402 079 803 or contact us here for a personalised consultation.

Addressing Common Questions About Shed Wiring in NSW

Can I Wire My Shed Myself in NSW?

Absolutely not. All electrical work in NSW must be conducted by a licensed electrician. This encompasses tasks such as running cables to the shed, installing the sub-board, power points, lighting, and more. Engaging in DIY electrical work is illegal and poses significant dangers to you and your property. Your electrician will issue a Certificate of Compliance once the work has been completed, ensuring everything meets the required standards for safety.

How Deep Must Underground Cable Be Buried According to Regulations?

According to the Australian Wiring Rules (AS/NZS 3000), underground cable installed in conduit should be buried a minimum of 500mm deep under normal conditions. If vehicles are expected to drive over the route, the cable must be buried deeper, typically around 600mm or more. Your electrician will determine the appropriate depth for your specific property circumstances, ensuring compliance with safety regulations to prevent damage and hazards.

Do I Need a Separate Meter for My Shed?

In most instances, the answer is no. The shed’s sub-board connects back to your main house switchboard and draws power from the same meter. A separate meter is only necessary if the shed serves as a standalone dwelling or commercial premises — this consideration involves discussions with both the council and your energy distributor to ensure compliance with local regulations and standards.

How Long Does It Typically Take to Wire a Shed on Acreage?

A basic shed wiring job, which includes trenching, cable installation, sub-board setup, lighting, and power points, typically takes between one to two days once the trench is prepared. If you're digging the trench yourself, your electrician can provide guidance on the precise route and depth before you begin. Keep in mind that three-phase installations may take longer due to the need to arrange the supply connection with the distributor first, which requires careful coordination.

Can I Run Power From the Shed to Other Buildings on My Property?

Yes, you can run power to additional buildings. However, each additional building will require its own appropriately rated cable run and may need its own sub-board depending on the load. Your electrician can design a comprehensive layout across multiple buildings to ensure that the cabling and switchboard capacity are adequate from the outset, rather than trying to add components later and potentially creating issues with power distribution and safety.

Ensure Your Shed Wiring is Done Right with Professional Assistance

If you are located on acreage near Bellingen, Coffs Harbour, Sawtell, Boambee, or anywhere across the Mid North Coast, Hack-It Electrical Solutions is here to assist you in setting up your shed correctly — whether it involves a basic lighting and power setup or a comprehensive three-phase workshop installation tailored to your specific needs and preferences.

Give us a call at 0402 079 803 or reach out through our website to schedule a site visit. We will survey your property, determine the optimal cable route, and provide you with a straightforward quote that meets your requirements and budget.
