Clay Soil’s Effect on Pipes in Caboolture

If you live in Caboolture, Morayfield, Upper Caboolture, or the Moreton Bay region and have observed wet patches, sinking ground, frequent blockages, or visible cracks in your foundations, you may be concerned that reactive clay soil is harming your underground pipes.

The foundations in Caboolture consist of reactive clay, which expands when wet and contracts when dry, sometimes varying in volume by 20% or more. This ongoing fluctuation exerts significant pressure on underground pipes during wet periods, leaving them susceptible as the soil dries out. Older clay sewer and galvanised water pipes are particularly at risk. A camera inspection can detect damage early, while pipe relining is often a viable solution that eliminates the need for excavation of your garden.

In Caboolture, your underground pipes continuously contend with the surrounding soil.

This constant struggle can ultimately result in serious pipe damage over time. By the time visible symptoms appear, the underlying issues may have been developing for a considerable duration.

What Impact Do Clay Soil Cycles Have on Pipe Integrity?

There are four essential phases to consider: wet swelling (compression), dry shrinking (loss of support), the repetitive stress of the cycle, and the common drought-to-flood transition seen in Southeast Queensland. Each cycle intensifies existing cracks and misaligns joints.

• The wet phase: Heavy rainfall in Caboolture causes the clay to absorb water and expand. This expansion exerts crushing pressure on pipes from all sides, potentially forcing joints together or pulling them apart. Rigid pipe materials are especially vulnerable to cracking under such immense pressure.
• The dry phase: Following the cessation of rainfall, the clay dries and contracts, pulling away from the pipes. This creates voids and gaps, resulting in sagging, bending at joints, and the formation of bellies where water and sediment can accumulate.
• The repeat cycle: This pattern of expansion and contraction recurs frequently with changing weather—often dozens of times annually in Caboolture's climate. Each cycle amplifies stress on the pipes and gradually exacerbates existing cracks.
• The drought-flood pattern: Southeast Queensland experiences alternating dry spells and intense wet seasons. After a prolonged dry period, the clay shrinks significantly. When heavy rain finally falls, the soil expands rapidly, placing pipes—potentially resting in loose, cracked ground—under sudden, extreme pressure.

Which Pipe Types Are Most Susceptible to Damage?

Older clay sewer pipes (from properties built before the 1970s), galvanised steel water mains (from homes constructed prior to 1985), and concrete stormwater pipes face the highest risk of damage. Modern PVC pipes generally perform better, but inadequate backfill can still result in joint separation. Copper pipes, while more flexible, can develop pinhole leaks at connection points due to repeated stress.

• Clay pipes: Clay sewer pipes, especially those from homes built before the 1970s in Caboolture, are among the first to fail. Their brittle construction and mortar joints make them prone to cracking.
• Galvanised steel pipes: Used for water supply in homes built before 1985, these pipes are compromised by internal corrosion and can crack as the clay soil shifts around them.
• Concrete stormwater pipes: While older stormwater systems can withstand compression reasonably well, they often crack at joints during ground movement, allowing roots to intrude through these openings.
• PVC pipes: Modern PVC pipes are more resilient to ground movement due to their flexibility. significant ground movement can still lead to joint separation. Poor backfill during installation can heighten the vulnerability of PVC pipes.
• Copper pipes: Utilised in newer homes for water supply, copper pipes are more flexible than galvanised steel but can still develop leaks at connection points due to repeated bending stress.

What Signs Should You Watch for Indicating Pipe Damage?

Stay alert for wet spots during dry weather, sinkholes or soft areas, slow drainage, unpleasant odours in your garden, unusually lush patches of grass, trees heavily rooting in one area, and cracks in your slab. If you notice two or more of these indicators, arrange for a camera inspection without delay.

• Wet patches in the garden during dry weather—this may indicate water leaking from a damaged pipe and saturating the surrounding soil.
• Sinkholes or soft spots—these develop when soil is washed into a broken pipe, creating an underground void.
• Slow drainage or recurring blockages—a cracked, shifted, or belly-shaped pipe can trap debris and roots at the damaged locations.
• Unpleasant smells in your garden—a cracked sewer pipe may leak sewage into the surrounding soil.

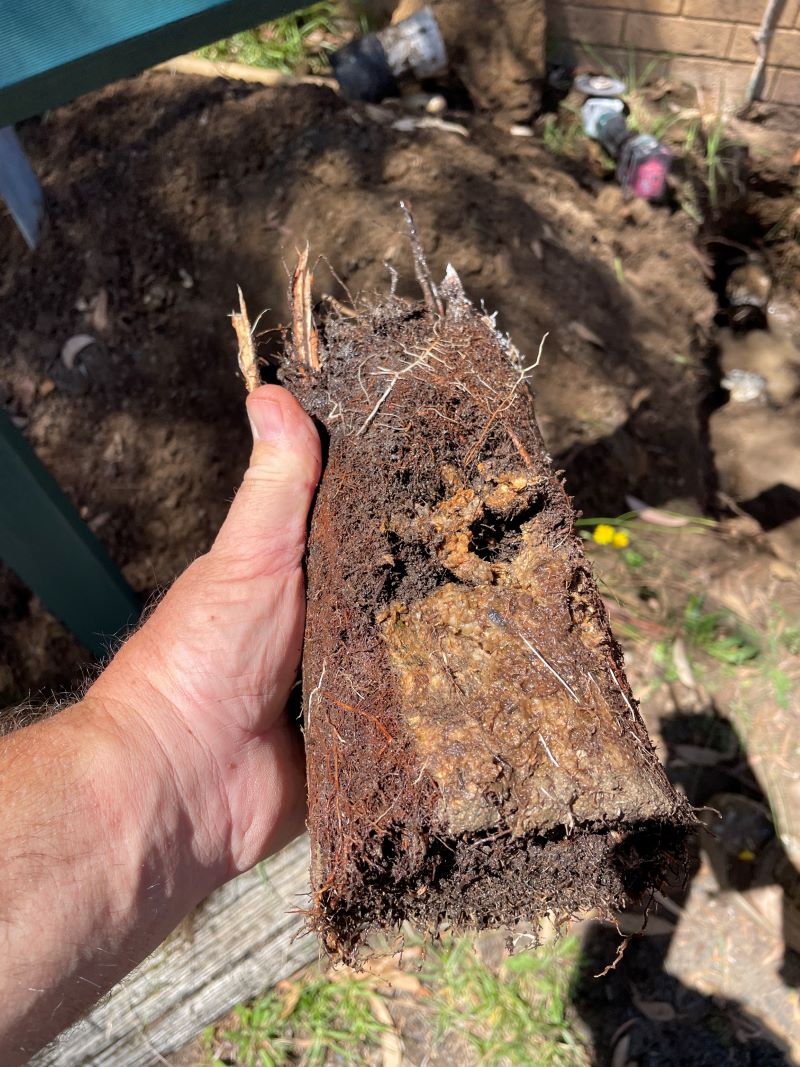

• Tree roots thriving in a specific area—trees often detect moisture and nutrients leaking from damaged pipes, resulting in concentrated root growth.
• Cracks in your slab or foundation—movement in the clay soil affecting your pipes can also impact your home's foundations.

How Is Pipe Damage Diagnosed?

We use CCTV drain cameras to conduct real-time visual inspections of sewer and stormwater pipes, identifying cracks, root intrusions, displaced joints, bellies, and collapses. For water mains, we employ acoustic and thermal leak detection methods, combined with a comprehensive property assessment to predict potential future damage.

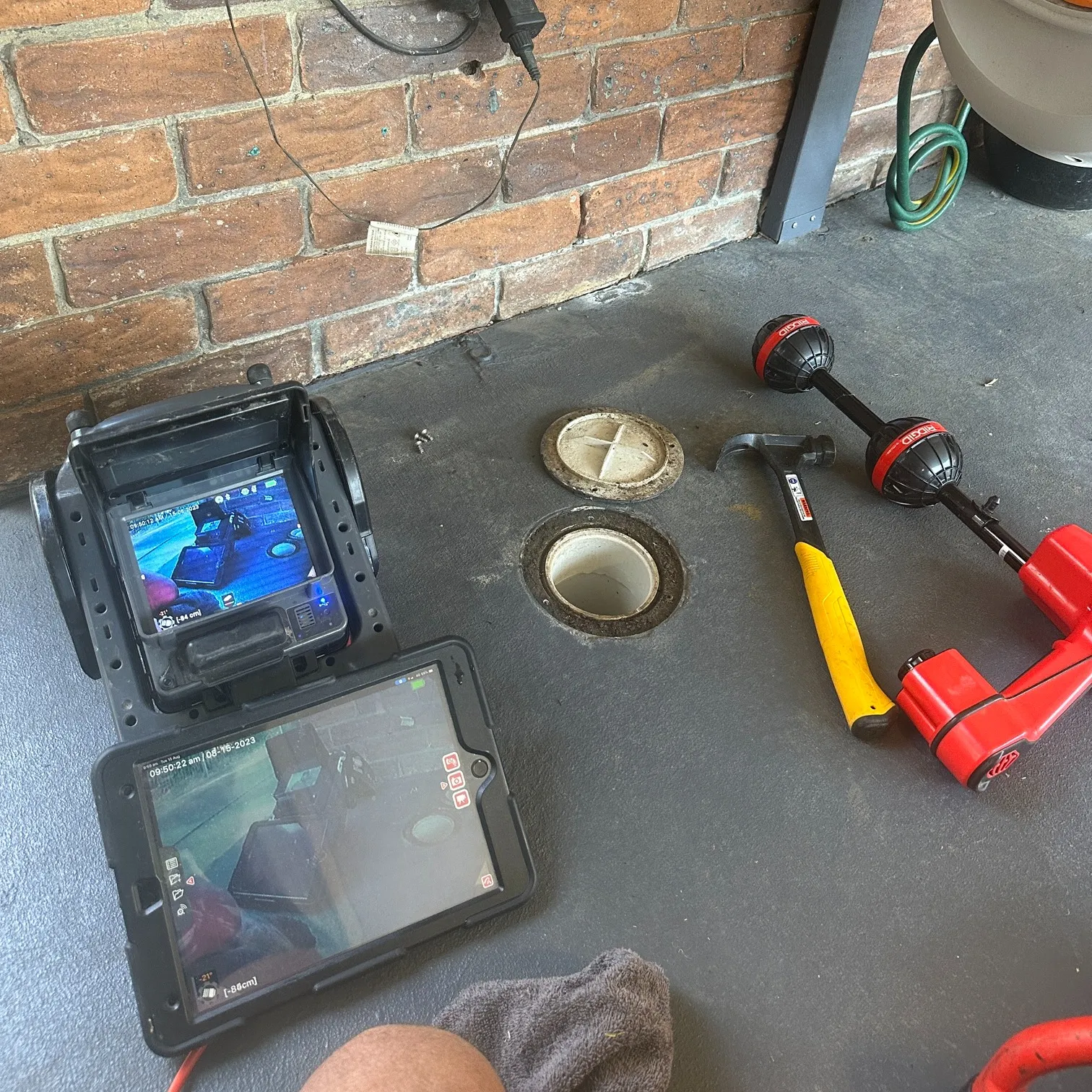

• CCTV drain camera inspection: A camera traverses through the pipe, providing a live visual of its condition. We can uncover cracks, breaks, root intrusions, displaced joints, sediment accumulation, and areas that have collapsed.
• Leak detection: To locate leaks in water supply pipes, we utilise advanced acoustic and thermal detection tools, enabling us to pinpoint issues without excavation.
• Ground assessment: We evaluate the entire landscape—soil conditions, tree placements, pipe materials, and property layout—to understand the causes of damage and anticipate where issues may arise next.

What Solutions Are Available for Pipe Damage?

Hydro jetting is used to clear immediate blockages. For cracked or root-invaded pipes, pipe relining is the most effective solution—this process does not require excavation. Installing French and spoon drains can help mitigate future ground movement pressure. Full excavation is only necessary in cases of complete pipe failure.

• Hydro jetting: This technique clears roots, sediment, and debris from damaged pipes to restore proper flow, often serving as a preliminary step before conducting a camera inspection.
• Pipe relining: This solution is ideal for cracked and root-invaded pipes in clay soil. A flexible resin liner is inserted into the damaged pipe and cured in place, eliminating the need for excavation. This solution is designed to last over 50 years.
• French drains: These systems redirect groundwater away from pipe corridors, reducing the pressure caused by the wet-dry cycle.
• Spoon drains: These surface drains capture and redirect rainwater before it saturates the soil around underground pipes.
• Excavation and replacement: This option is reserved for completely collapsed pipes where relining is not feasible. We replace the damaged section with new PVC pipes bedded on sand (rather than clay) to mitigate future issues caused by ground movement.

Why Is Prompt Action Essential to Prevent Pipe Collapse?

Damage to underground pipes in clay soil progresses over time. The situation does not stabilise; it deteriorates. A minor crack today could escalate to complete pipe failure tomorrow. Roots that infiltrate gaps will continue to grow, ultimately obstructing the pipe entirely.

The most economical repairs are those carried out early. A camera inspection reveals the precise conditions underground, allowing you to plan necessary repairs before an urgent situation arises.

You can also verify our QBCC licence on the QBCC public register before scheduling a booking—we are a licensed plumbing contractor in Queensland.

Call 1300 793 962 or contact us to arrange your underground pipe inspection.

Frequently Asked Questions About Clay Soil and Pipe Damage

How Can I Reduce the Risk of Clay Soil Damaging My Pipes?

While you can minimise the risk of damage, complete prevention is not possible. Regularly watering the area around your home during dry spells can help reduce the shrinkage cycle. Effective tree management can alleviate root pressure on pipes. Proper drainage systems also assist in minimising soil saturation. Regular monitoring of pipes in reactive clay soil is vital—camera inspections can identify issues early.

What Costs Are Involved in Repairing Pipes Damaged by Clay Soil?

Repair costs vary based on the extent of the damage and the chosen method. Hydro jetting to clear a blockage starts at around $350. Pipe relining for a damaged section typically begins at $4,000, while full excavation and replacement for a collapsed pipe may exceed $8,000, influenced by factors such as depth, length, and access. We provide accurate pricing after conducting a camera inspection.

Is Pipe Relining Equally Effective as Installing a New Pipe?

In most instances, yes. A relined pipe has a smooth, jointless interior that actually facilitates better flow than the original pipe. The resin liner is resistant to root intrusion and corrosion, boasting a lifespan of over 50 years. The primary advantage of relining over replacement is that it preserves your garden, driveway, and yard.

How Can I Determine If My Property Contains Reactive Clay Soil?

Caboolture, Morayfield, Upper Caboolture, and much of the Moreton Bay area are situated on reactive clay. Signs to look for include deep cracks in the soil during dry spells, sticky clay when wet, and uneven ground levels throughout the seasons. If your home was constructed with special footings (deeper and reinforced), the builder likely recognised the reactive nature of the soil.

Who Should Consider This Article Irrelevant?

• If you are located outside the Moreton Bay region—different soil conditions require different solutions. Our services specifically cater to Caboolture, Burpengary, Morayfield, Bribie Island, Narangba, and surrounding suburbs.
• If you plan to undertake DIY plumbing work—underground sanitary plumbing must be performed by a licensed plumber in Queensland.
• If you seek the cheapest quick fix without an inspection—we prioritise thorough assessments; we will not commence excavation without first conducting a camera inspection.
